Meniscus lenses Product

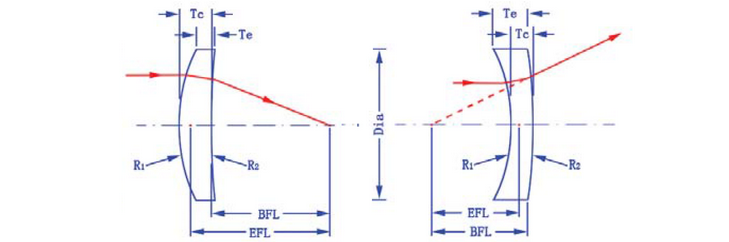

Meniscus lenses are convex-concave lenses. They have one outward curved face and one inward-curved face. If the outward curve is sharper than the inward curve, the lens has a positive focal length and acts as a magnifier.
We can manufacture lenses in any optical material required. Please contact us with your specific requirements.
Meniscus lenses specifications
|
Diameter Tolerance |
±0.02 mm |
|
Center Thickness Tolerance |
±0.02 mm |
|
Focal Length Tolerance |
±1% |
|
Surface Quality |
20/10 or better |
|
Material |
BK7, UVFused silica, Ge,CaF2, ZnSe, etc |
|
Clear Aperture |
>90% |
|
Centering |
<3 arc min |
|
Coating |
Custom |
|
Bevel |
Protective bevel as needed |
