Penta prism

Product Details

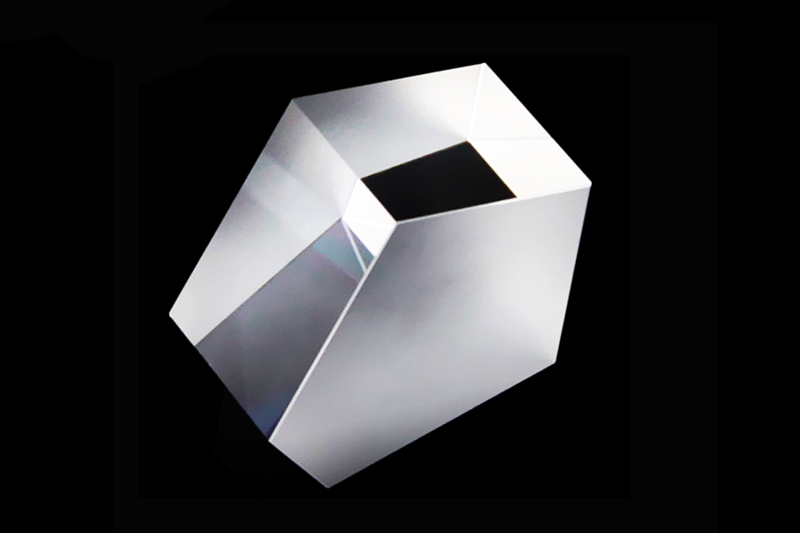

Penta prism product


Penta prisms description

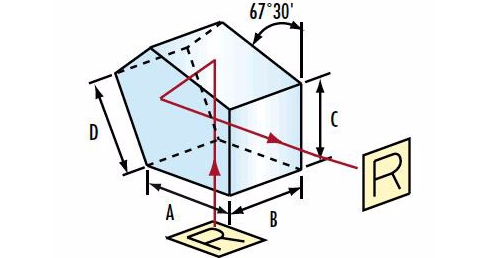

Penta prisms are five-sided prisms featuring a ray deviation of 90° and a right handed image. The reflecting surfaces are aluminized. Slight movement of the prism does not affect the true right angle at which light rays are reflected, making a penta prism the ideal optical tool for defining a right angle in an optical system.


We can manufacture prisms in any optical material required. Please contact us with your specific requirements.


Penta prism specifications

Dimensional Tolerance ±0.02mm
Angle Tolerance ±1 Arc Seconds
Surface Flatness λ/10
Surface Quality 20/10 or better
Material BK7/quartz/sapphire/Ge/CaF2/ZnSe .etc
Bevel Protective bevel as needed
Coating Custom
