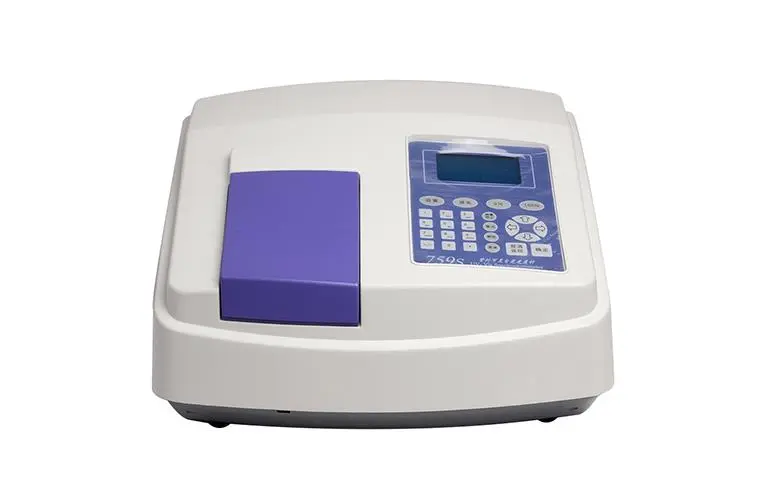

756S & 759S UV Vis spectrophotometer
  • 756S & 759S UV Vis spectrophotometer
  • Contact Us
  • yibeiteoptics@gmail.com

Product Details

756S & 759S UV Vis spectrophotometer product

756S & 759S UV Vis Spectrophotometer both are single beam spectrophotometer. The instrument has the features like delicate structure, high performance specification, long-life light source, various convenient functions and etc. They could make the qualitative and quantitative test in material research, pharmaceutical analysis, Biochemical and clinical examination, analysis of water quality control, food inspection and the other fields.

756S & 759S uv vis spectrophotomete Main Features

Long service life of light source: The long-life light source from HAMAMATSU in Japan guarantees a working life of more than 2000 hours, which greatly reduces the maintenance frequency and cost of daily replacement of the light source of the instrument.

Low stray light: The precise optical design ensures that the instrument can reach the stray light level of less than 5/10,000, meeting the user's measurement requirements for samples with high absorbance.

High wavelength accuracy: The built-in spectral characteristic wavelength of the instrument automatically performs wavelength detection and correction to ensure wavelength accuracy and long-term stability.

Wide wavelength range: The wavelength range of the instrument covers 190nm to 1100nm, reaching the widest wavelength range of the same grade of instruments, meeting the wavelength requirements of most spectrophotometric analysis and testing.

High-speed scanning: Multi-level optional scanning speed, high-precision wavelength drive mechanism, combined with high-precision stepper motor subdivision technology and high-speed digital signal processing technology, the maximum wavelength scanning speed reaches 7000nm/min, and the wavelength moving speed is higher than 10000nm/ min. High-speed scanning can help users to capture the instantaneous spectral changes of samples and improve work testing efficiency.

Automatic matching function of cuvettes: The 759S UV-Vis spectrophotometer supports automatic matching of cuvettes, which can effectively reduce the error caused by differences in cuvettes for quantitative testing, and further improve the test accuracy.

High photometric accuracy: The overall aluminum alloy die-casting mold is used to ensure that the optical optical path meets the measurement design requirements, improves the process assembly efficiency, and achieves high photometric accuracy test indicators.

Single-machine U-disk storage: equipped with U-disk storage function, the quantitative data of the single-machine test is stored in the U-disk, and the file format is compatible with application software such as Excel, which is convenient for users to manage data.

The single-machine quantitative analysis function is rich: the electronic system adopts a 32-bit ARM core processor system and is equipped with a 128×64 large-screen LCD display. The single-machine quantitative analysis function can perform multi-wavelength testing, standard curve fitting and measurement, standard coefficient equation input, and standard equation. Reading and storage, data storage and printing, concentration quantitative test and other functions.

Light source replacement is convenient: The deuterium lamp of the instrument is fixed by a universal flange, and the replacement of the deuterium lamp can be completed with the operation of two screws, without the need for optical path adjustment, which makes the maintenance of the instrument simpler and more reliable.

USB communication mode: The instrument uses USB to connect to the computer, with high interface penetration rate, fast communication speed and high degree of automation. Compared with the traditional RS232 serial port, users can realize online communication without any parameter setting.

Powerful software: the software can realize spectrum scanning, time scanning, kinetic test, quantitative analysis, multi-wavelength analysis and formula calculation, spectrum processing, peak and valley search, printing data, DNA/RNA test, instrument calibration, performance verification, etc. functions to meet various requirements in different areas of analysis.

Model 756S uv vis spectrophotometer 759S uv vis spectrophotometer
Light source Deuterium Lamp Hamamatzu Deuterium Lamp (over 2000 hours)
(over 500 hours)
Wavelength Range 190nm~1100nm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ≤0.2nm
Bandwidth 2nm
Photometry Accuracy ±0.5%T ±0.3%T
Photometry Repeatability ≤0.2%T ≤0.15%T
Stray Light ≤0.1%T(220nm, NaI) ≤0.05%T(220nm, NaI)
Baseline Flatness ±0.002A
Stability ≤0.0008A
Noise ≤0.5%T(100%T),  ≤0.2%T(0%T) ≤0.3%T(100%T), ≤0.1%T(0%T)
Photometry Range 0.0~200%(T),-0.3~4(A)
Display System 128*64 LCD Display
Functional Port USB-A(U Disk), USB-B(PC), Serial Port(Printer)
Instrument Dimension 370mm*440mm*220mm
Weight N.W.: 9KG; G.W.: 10KG


Standard configuration items quantity
UV-Vis Spectrophotometer Host one tower
Instruction Manual one book
Product Certificate of Conformity one serving
10mm Quartz Cuvette 2 only
10mm glass cuvettes 4 only
power cable one root
1cmLight path cuvette holder one
fuse2A 2 only
Packing List one serving
Product Warranty one serving
U disk one


Optional accessory items Specification
Rectangular cuvettes (glass) 1cm2cm.3cm5cm
Rectangular Cuvette (Quartz) 1cm2cm.3cm5cm
5cmLight path cuvette holder
UV-Prolab Operating software (CD-ROM)
USB Communication Cable
Neodymium Praseodymium Filters
Holmium oxide filter
Deuterium lamp, tungsten lamp
LG S20Other accessories in the series

Whether you need help with our Optical spectrometer, want to know more or simply need directions,just contact Ebetter Optics here.

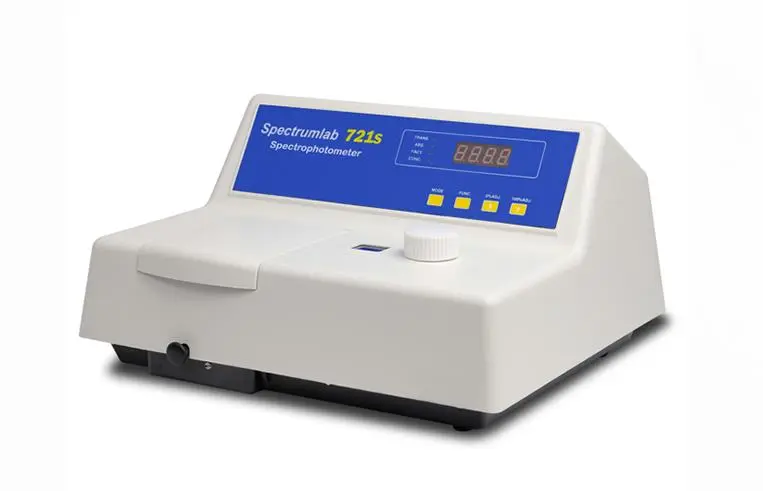

Other types of spectrophotometer
