optical polarized beam splitter prism K9 UV Quartz polarizing cube with PBS coating

optical polarized beam splitter prism K9 UV Quartz polarizing cube with PBS coating

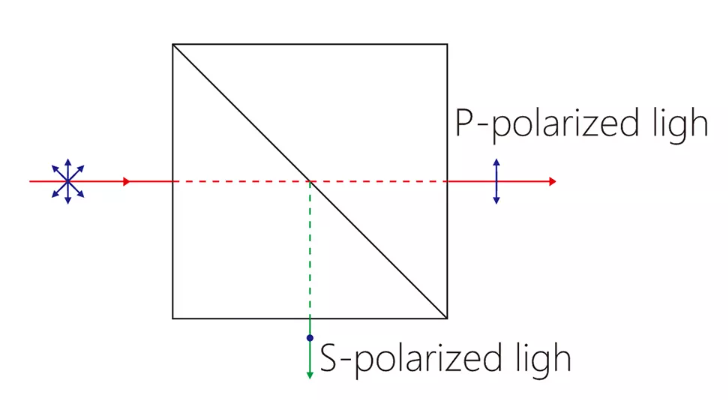

Polarizing beamsplitter prisms can split incident unpolarized light into two perpendicular linearly polarized beams. The P-polarized light is completely passed through, while the S-polarized light is reflected at an angle of 45 degrees, and the exit direction is at a 90-degree angle to the P light. The polarizing beam splitting prism is made of a pair of high-precision right-angle prisms glued together, and a polarizing beam splitting dielectric film is coated on the hypotenuse of one of the prisms.

Product name
Polarized beam splitter prism
surface quality
60/40~40/20
coating
Bonding surface plating PBS film, right angle side AR film
Dimensional tolerance
±0.03~0.1mm
Angle tolerance
±3"~8"
Parallel deviation
±5'~30'
Surface accuracy
N=0.5~2
transmittance
Tp>95%,Ts<1%
Reflectivity
Rs>99%,Rp<5%
local
△N=0.2~0.5

We can manufacture lenses in any optical material required. Please contact us with your specific requirements.
