Precision Aspheric Lens
  • Precision Aspheric Lens
  • Contact Us
  • yibeiteoptics@gmail.com

Product Details

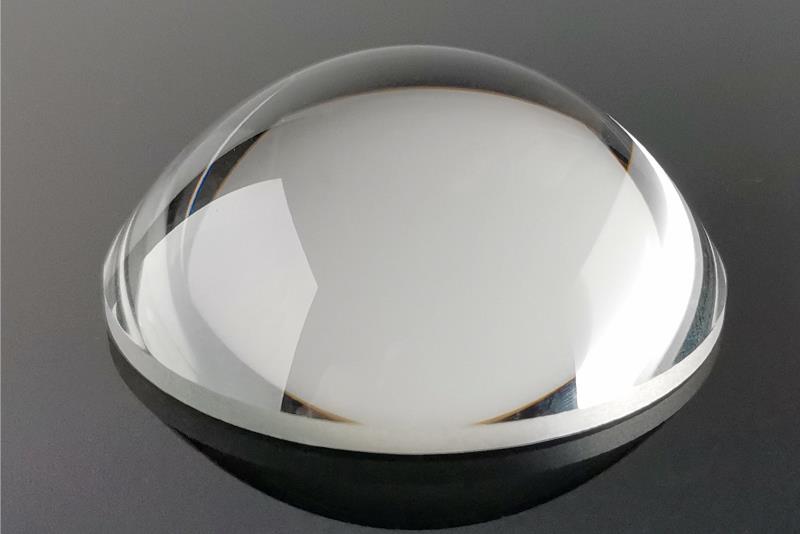

Precision Aspheric Lenses product

Precision Aspheric Lenses are designed to focus light while eliminating spherical aberration from divergent light sources in applications including focusing the output of a laser diode. Aspheric lenses can increase the numerical aperture of a lens while minimizing system aberrations. Aspheric lenses may also reduce the number of elements needed in a multi-element system. Aspheric lenses can reduce overall system weight while providing advantages such as increasing throughput or simplifying assembly.

Product Name Aspherical lens
Diameter &Tolerance ±0.02mm
Clear aperture >90%
Thickenss &Tolerance ±0.02mm
Surface Flatness λ/10
Surface Quality 20/10
Material N-BK7,Quartz, Sapphire, CaF2, Ge,Si,ZnSe .etc
Beveling 0.25±0.1mm
Coating AR coatimg/Reflective coating/Dichroic film
We can manufacture lenses in any optical material required. Please contact us with your specific requirements.Custom lenses are available on request.
